    Converting Toolbox

    Provided by SIEMENS

    With the Converting Toolbox Equipment Module a TIA Portal project for your unique Converting application is generated.

    The following applications are included:

    • Winder
    • Line Tension Control
    • Traversing Drive
    • Data export for continious web simulation with SIMIT
    • Flying saw

    The wizard-based tool supports you with the integration of the machine axes and the configuration of the necessary parameters of the standard applications involved.

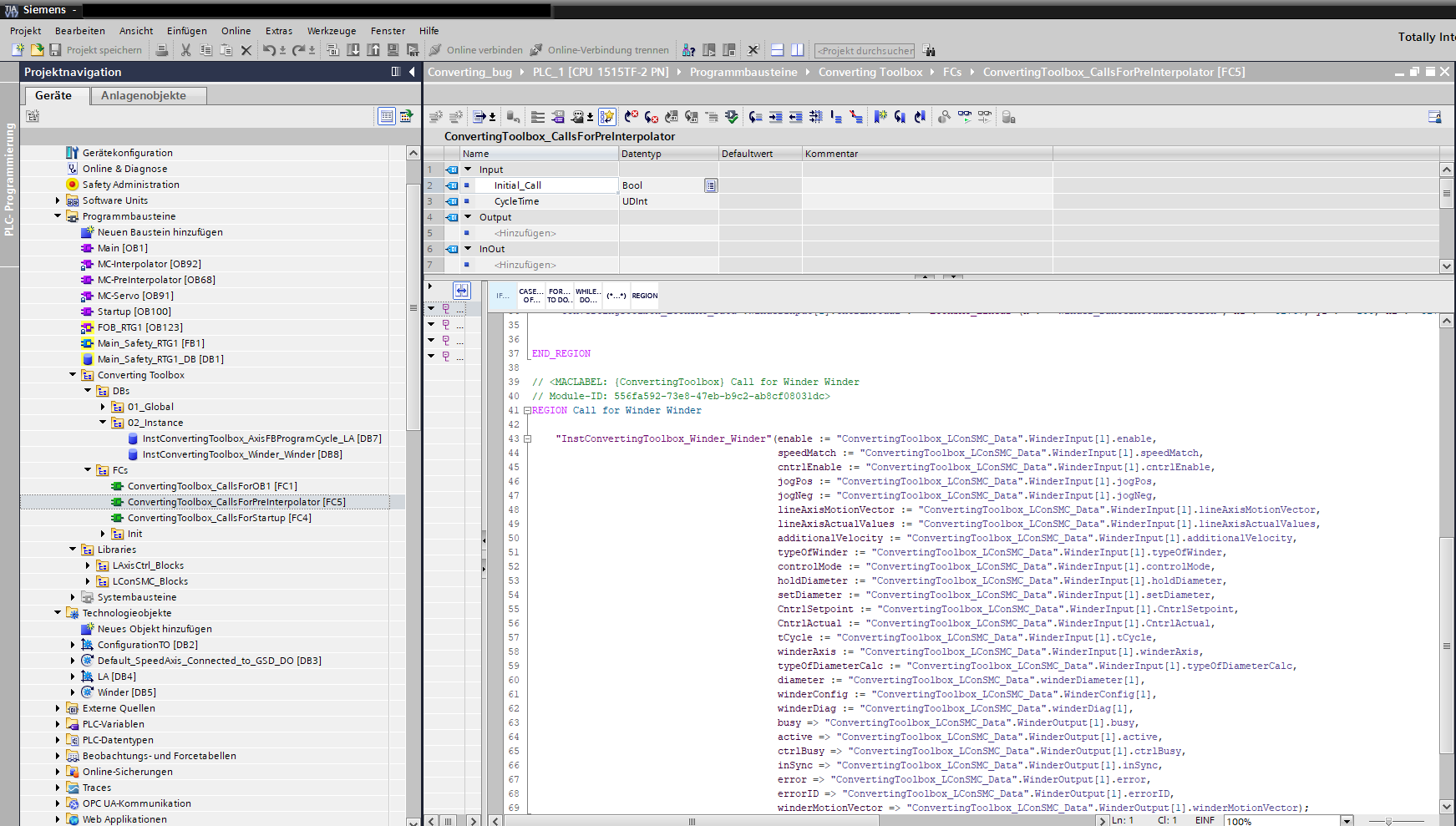

    The Modular Application Creator then generates the technology objects, program and library sources and HMI masks into the existing TIA Portal project.
    In addition, the technology objects are connected to existing SINAMICS drives, telegrams are created and synchronous relationships are set in the technology objects.

    The generated project can simply be downloaded to the controller after generation and used immediately.
    For the applications Winder and Line Tension Control, process models for the simulation with SIMIT can be generated.

    Free cloud trial
    Contact modular.application.creator.industry@siemens.com if you want to test the generating capabilities of this Modular Application Creator Equipment Module in the cloud for free.

    Asset and updates will be sent to the E-Mail address you defined in the ordering process.

    The Equipment Module is available in German, English and Chinese.

    License Model
    Subscription for 12 months starting with the date indicated on the Order. Subscription will automatically renew, unless either party notifies the other that it has decided not to renew.

    Entitlement
    This subscription entitles to create one instance on one device subject to the technical resources and requirements of the device.



    The selected products cannot be added to cart. Please review and modify product selection.

    Total: €1.272,00 / year

    ( €1.272,00 / year after trial period )
    Disclaimer: Taxes may apply
    You Save:
    Billing Term: Yearly
    Subscription Term: Yearly
    You Purchased this Product before and cannot purchase it again
    You previously purchased a trial license of this product and cannot purchase again.
    Configuration should at least have one item, to add to cart
    Supported payment types: Credit Card, Payment On Account

    Thank you for your interest in the MindSphere application Converting Toolbox . A member of the team will get in touch with you shortly about your request.

    Best regards,

    Your MindSphere team

    Your request has been timed out. Please try again.

    Added to cart

    Quantity

    Estimated total
    Tax calculated at checkout

    Key Features

    • generate your TIA-Portal project for your Converting application automatically
    • support of: winder, web tension and traveser
    • generate large parts of your SIMIT project based on your converting configuration


    Benefits

    • reduce engineering time for software by 80%

    Converting Toolbox Equipment Module

    This video shows the workflow in the Equipment Module Converting Toolbox. After configuring your converting application the TIA Portal project can be generated automatically.

    If I had written my own code, I would have spent three work weeks. By using Modular Application Creator, it took me only half a day
    Mark Baumann-Lund, Software Engineer at Baumatik

    Additional Information

    Thank you for your interest in our solutions for your business.

    Siemens AG

    Digital Industries

    Factory Automation

    Production Machines

    Digital Machines and Innovation

    DI FA PMA DMI

    Frauenauracher Str. 80

    91056 Erlangen, Deutschland

    E-Mail: modular.application.creator.industry@siemens.com

    contact modular.application.creator.industry@siemens.com and mention MLFB of this product (6ES7823-1ME02-0BN8)
